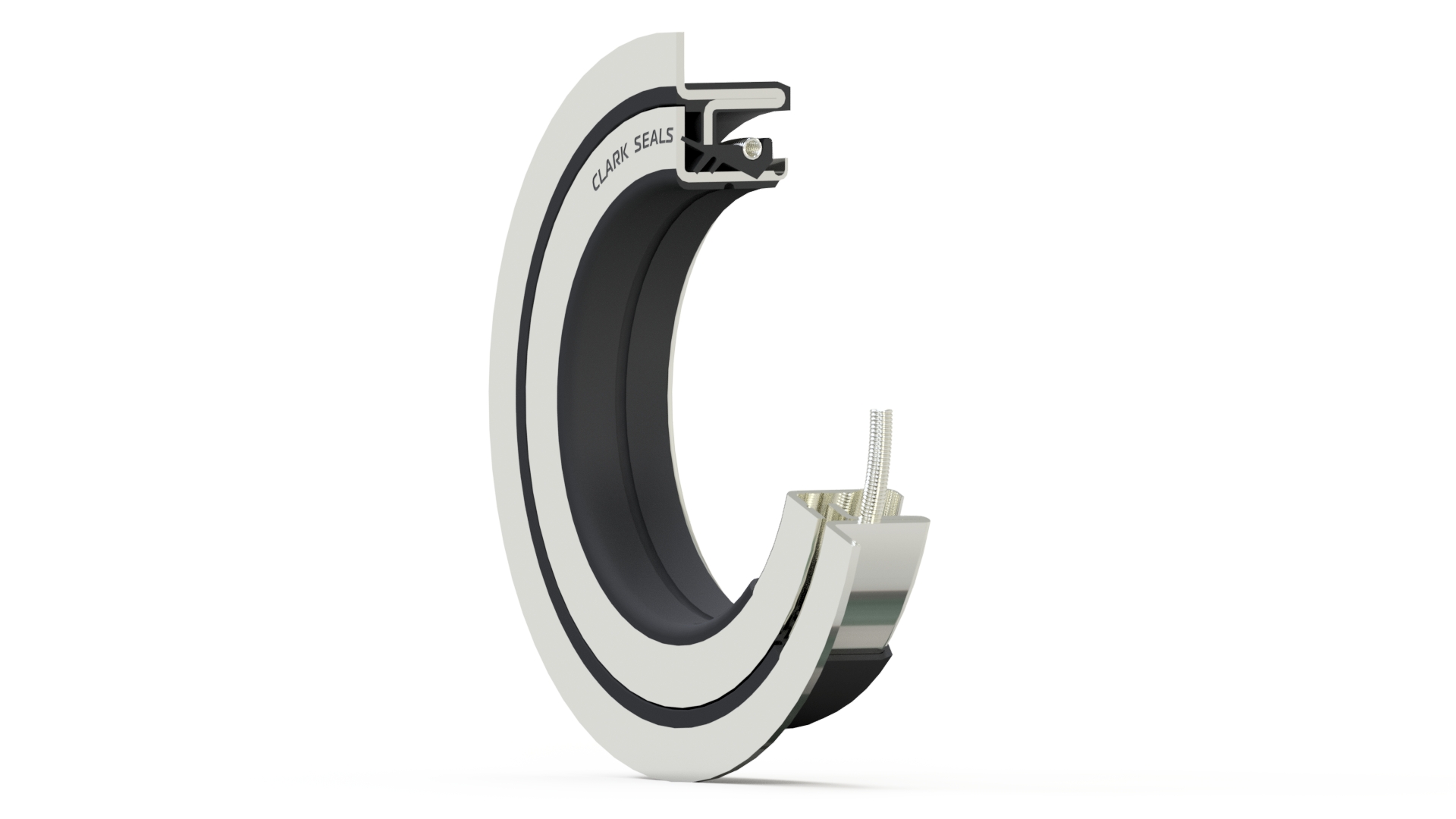

UT3CVJ

The “U” unitized oil seal designs incorporate a sleeve. They are more expensive and are generally used in mud or very dirty applications. They are frequently used on a shaft made of soft material. If more than three lips of an unitized seal have standard interference with a sealing surface, the shaft speed should not exceed 10”/sec (3m/sec.) Unitized seals can be designed to accommodate a small amount of shaft end play. Because of confinement, the heat at the sealing surface and lip interference must be dissipated by the fluid. Sometimes referred to as an oil bath seal. Installation tools are required to position the two components properly.

• We handle all makes and models
• We are endorsed by the local trading standards office
• All our technicians are equipped with the latest portable
• Proven results for setting exceptional standards
• Same day service for most repairs

Design

The rubber outside diameter provides optimized sealing ability in the housing, also at considerable surface roughness or in split housings. The beads on the outside diameter provide improved sealing ability and retention in the bore. They also prevent spring-back during installation.

The spring-loaded sealing lip contributes to a quick response in handling dynamic runout and maintaining the sealing performance, even when sealing lip wear is excessive.

Sealing lip and flex section are optimally balanced to withstand both high dynamic runout and shaft-to-bore misalignment. The auxiliary lip on HMSA10 seals is non-contacting, which means that the seals normally can operate at the same speeds as the single-lip HMS5 seals.

Material

The rubber outside diameter provides optimized sealing ability in the housing, also at considerable surface roughness or in split housings. The beads on the outside diameter provide improved sealing ability and retention in the bore. They also prevent spring-back during installation.

• We handle all makes and models
• We are endorsed by the local trading standards office
• All our technicians are equipped with the latest portable
• Proven results for setting exceptional standards
• Same day service for most repairs

The spring-loaded sealing lip contributes to a quick response in handling dynamic runout and maintaining the sealing performance, even when sealing lip wear is excessive.

Sealing lip and flex section are optimally balanced to withstand both high dynamic runout and shaft-to-bore misalignment. The auxiliary lip on HMSA10 seals is non-contacting, which means that the seals normally can operate at the same speeds as the single-lip HMS5 seals.

Applications and operating conditions

HMS5 and HMSA10 seals are designed for oil or grease lubricated applications with operating temperatures ranging from –40 to +100 °C (–40 to +210 °F), short-term up to 120 °C (250 °F). These seals are also appropriate for sealing lubricants within a wide range of viscosities.
